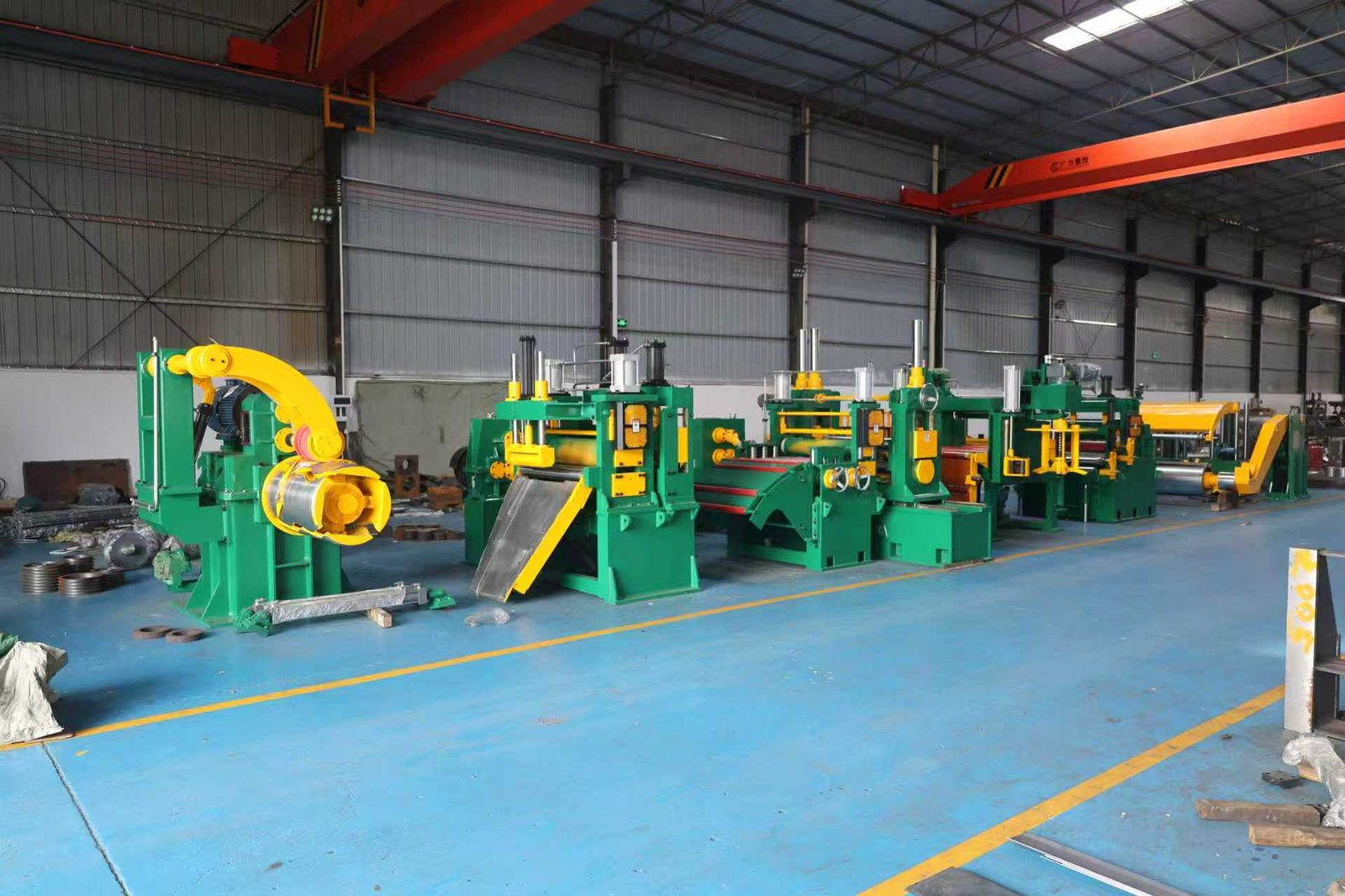

Non-standard and special metallurgical finishing equipment — engineered around your material, width and capacity, and built in our own workshop in Kunshan, China.

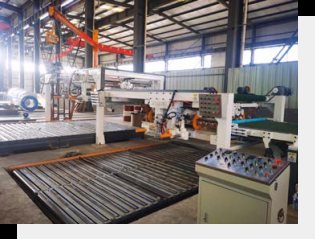

A high-tech enterprise integrating R&D, design and production, specializing in non-standard and special metallurgical finishing equipment. Building on the introduction and absorption of advanced foreign technology, we have successfully developed a series of products — metal coil slitting (longitudinal shear), cut-to-length (cross shear), flying shear, and combined slitting-cut-to-length lines — widely applied and praised by users. Some of these products lead in China; some replace imported equipment.
With exquisite technology, reliable product quality and complete after-sales service, the company has earned wide recognition across more than ten years of development. First-class hardware and a united, professional team let us serve metal processing enterprises at home and abroad with quality finishing equipment and technical service.

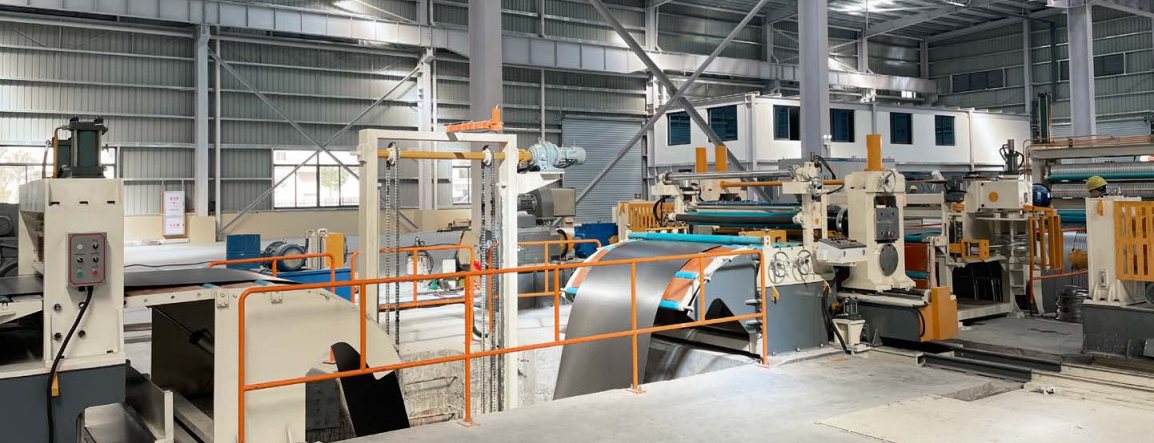

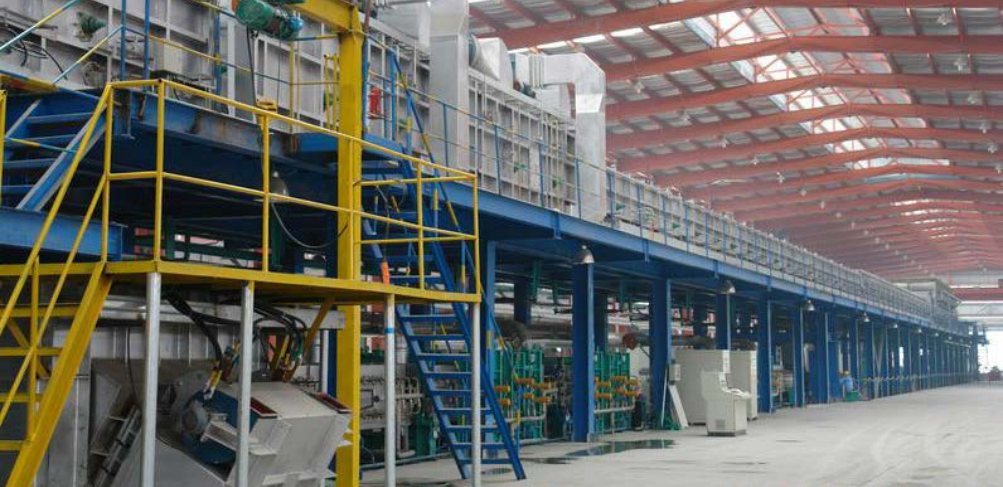

From coil to finished strip or sheet — slitting, leveling, cutting, tension leveling, annealing and coating. All parameters are determined according to customer requirements.
High-performance PLC programmable control — after manual threading, the line runs fully automatically.

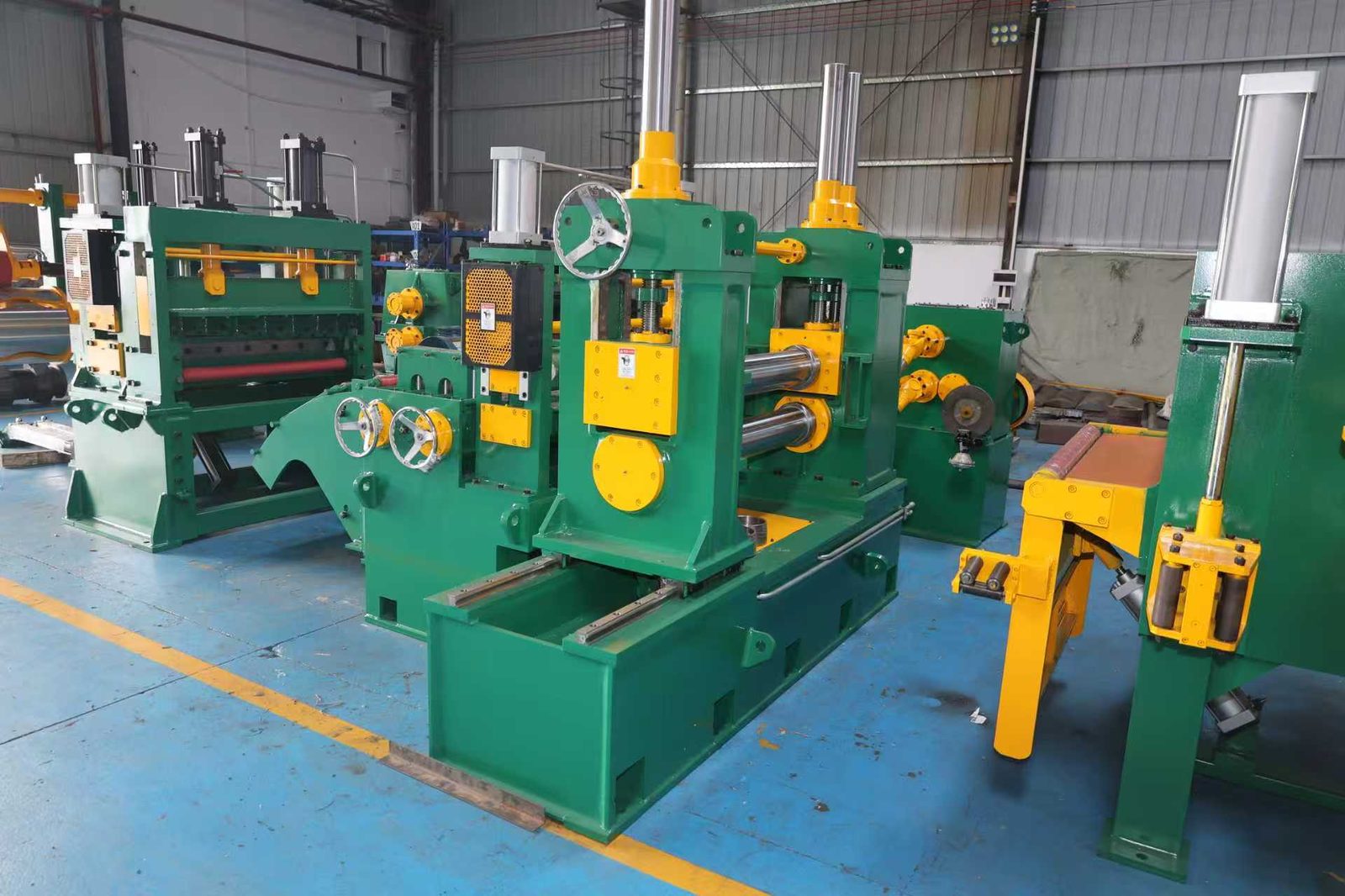

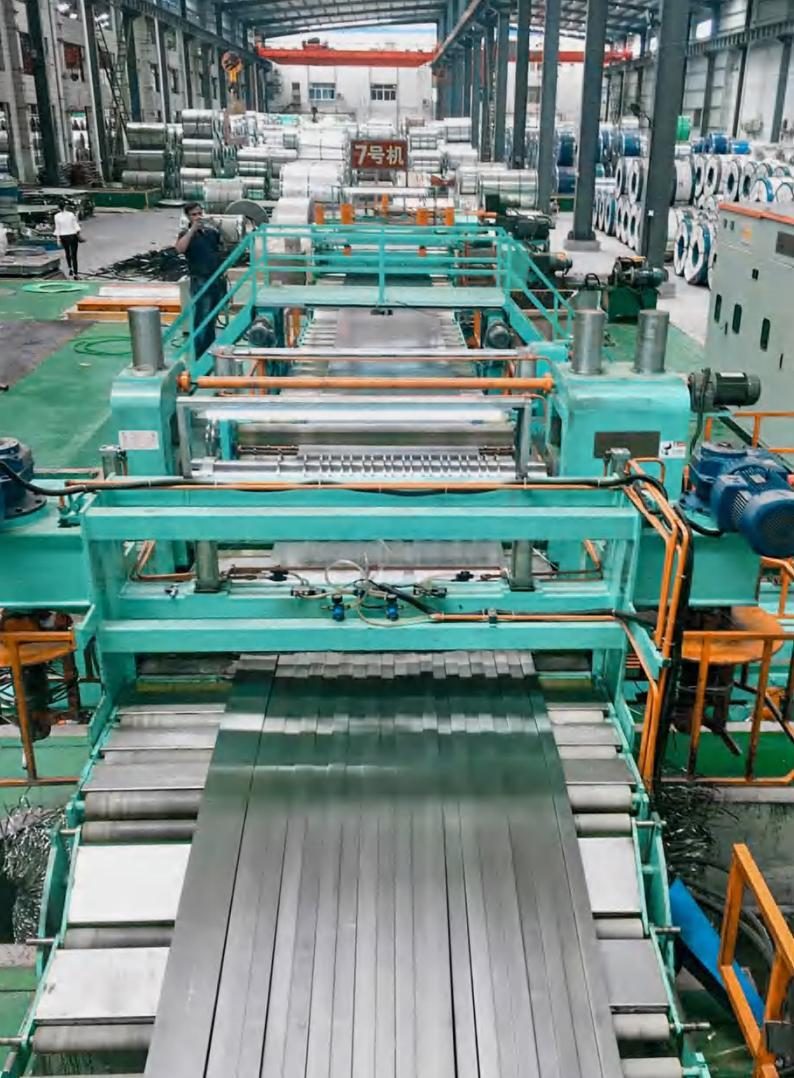

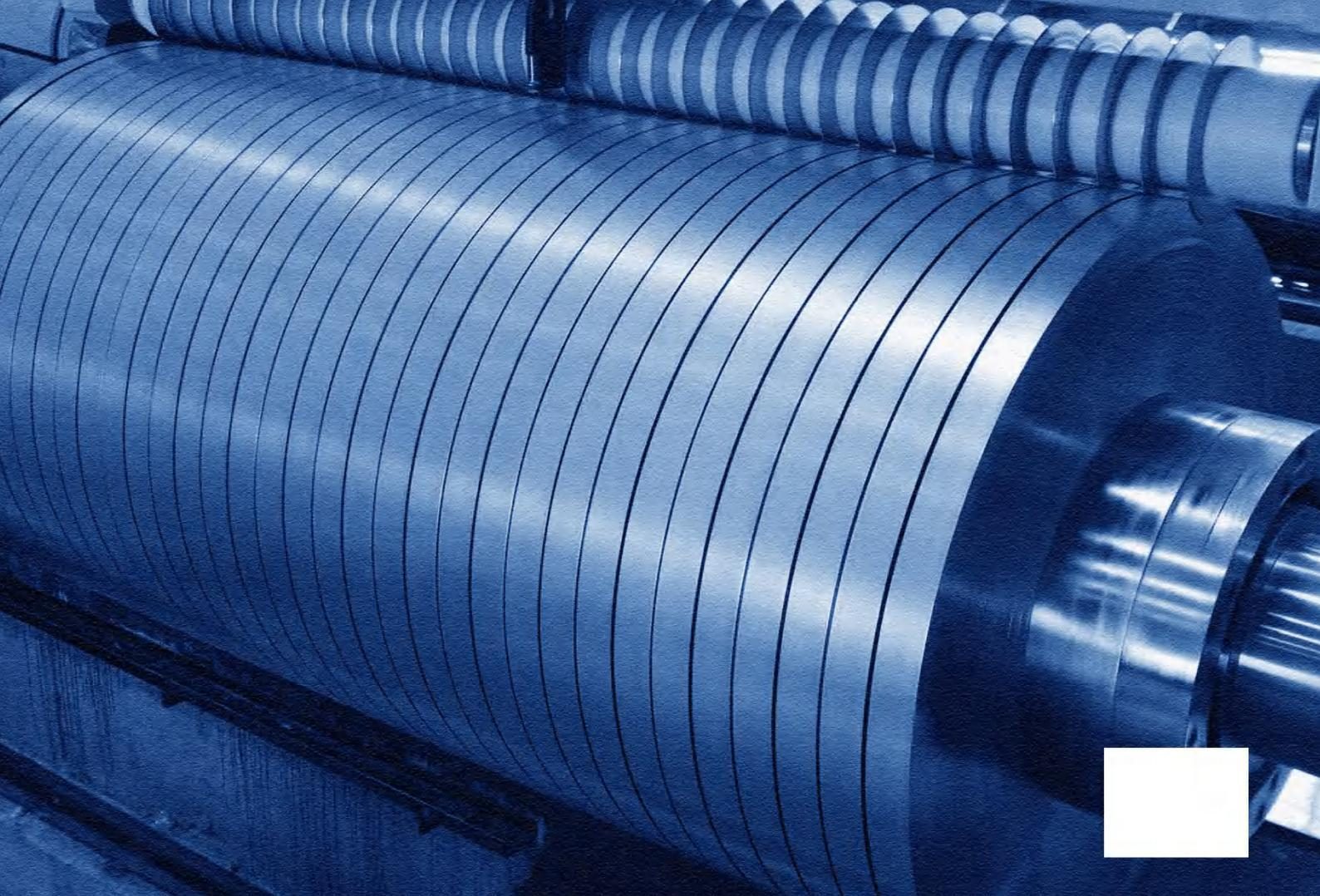

Uses the difference in internal and external friction coefficients of special belts: belt and strip stay in synchronized contact — scratches are eliminated, and tension is distributed evenly across every strip, so recoiled coils meet density and flatness requirements.
Input the data and the separator discs position themselves automatically — feeding time is reduced and work efficiency greatly increased.
| Coil weight | Max. 30,000 kg |
| Strip width | Max. 2100 mm |
| Strip thickness | 0.1 – 3.2 mm |
| Line speed | up to 300 m/min |

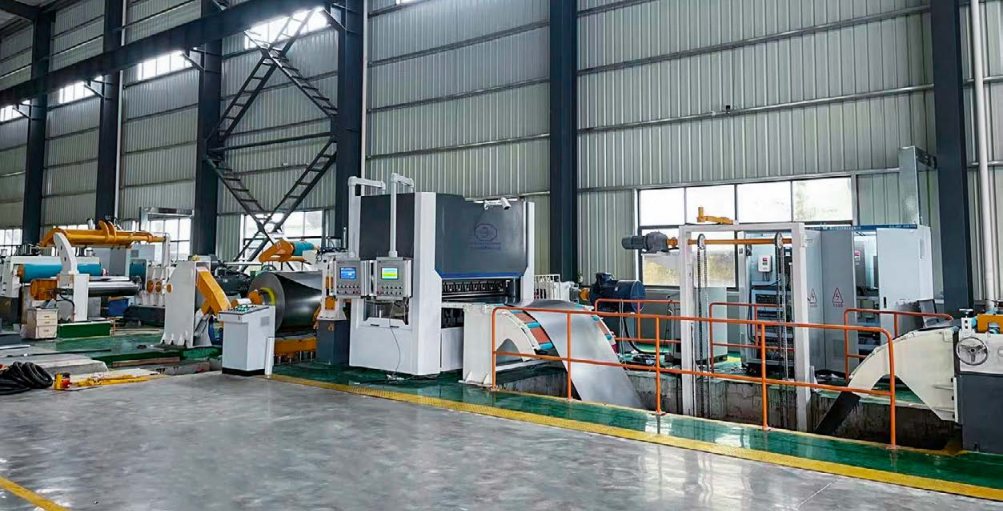

| Coil weight | Max. 40,000 kg |
| Strip width | Max. 2100 mm |
| Strip thickness | 2 – 8 mm |
| Line speed | up to 120 m/min |
| Coil weight | Max. 40,000 kg |
| Strip width | Max. 2500 mm |
| Strip thickness | 4 – 16 mm |
| Line speed | up to 60 m/min |
Note: the above standards are for reference only — parameters are determined according to customer requirements.

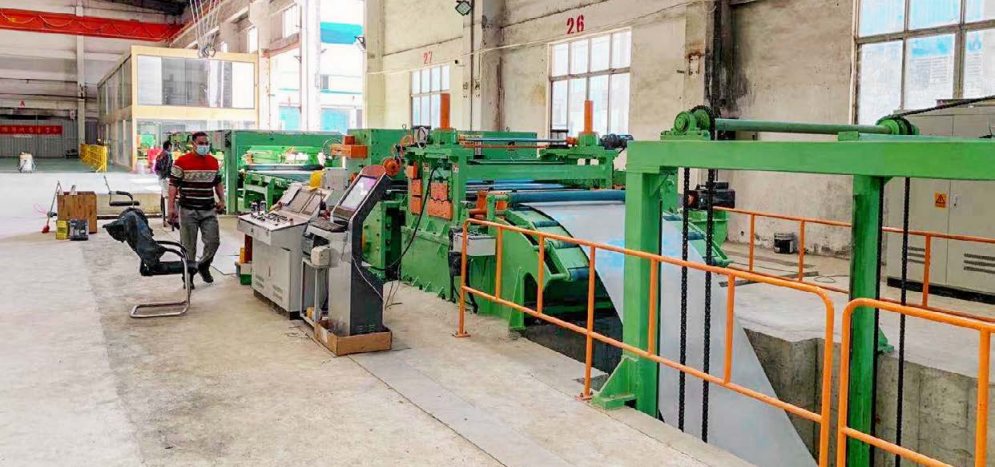

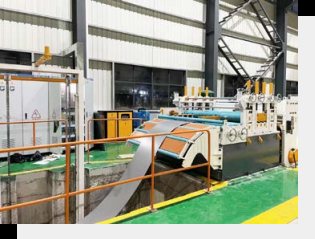

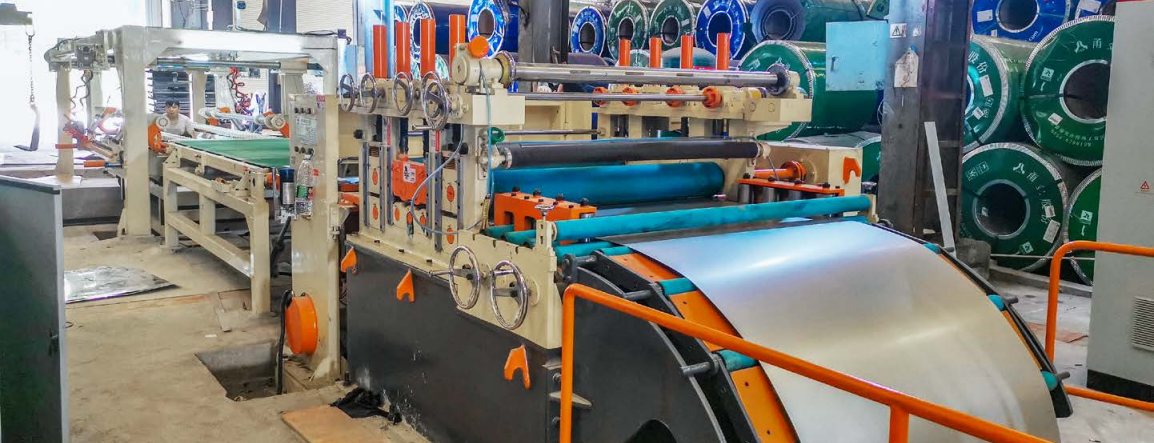

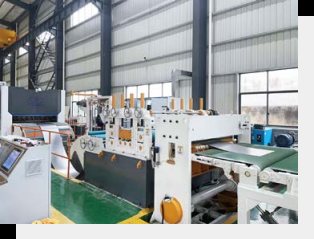

Efficient fixed-length cutting of steel plates: various coil materials are uncoiled, leveled and cut to sheets of different sizes — an indispensable processing line for the metal sheet industry.
| Coil weight | Max. 30,000 kg |
| Strip width | Max. 2100 mm |
| Strip thickness | 0.1 – 3.2 mm |
| Line speed | up to 60 m/min |
| Coil weight | Max. 40,000 kg |
| Strip width | Max. 2500 mm |
| Strip thickness | 2 – 8 mm |
| Line speed | up to 60 m/min |
| Coil weight | Max. 40,000 kg |
| Strip width | Max. 2500 mm |
| Strip thickness | 6 – 25 mm |
| Line speed | up to 30 m/min |
Note: the above standards are for reference only — parameters are determined according to customer requirements.

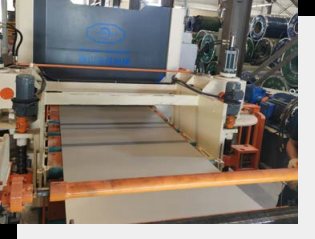

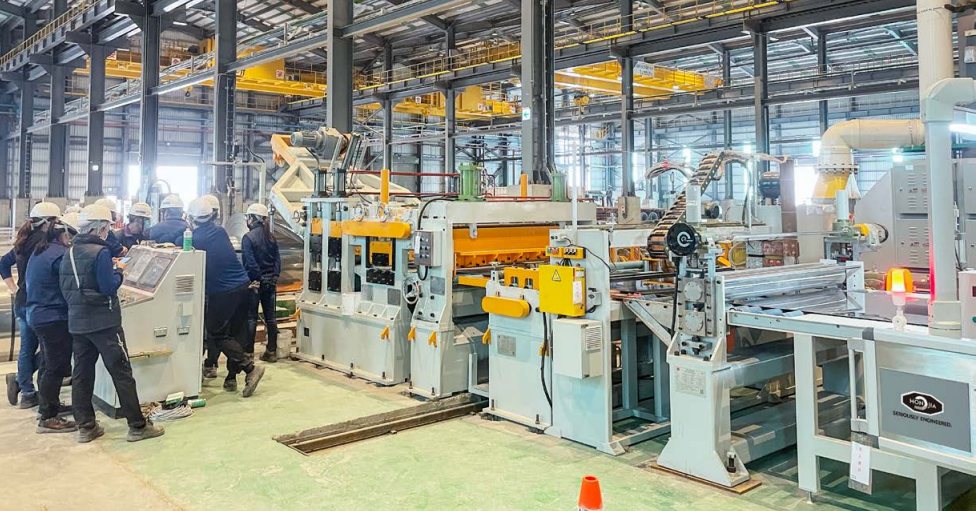

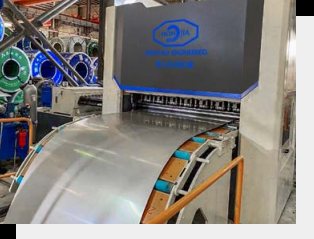

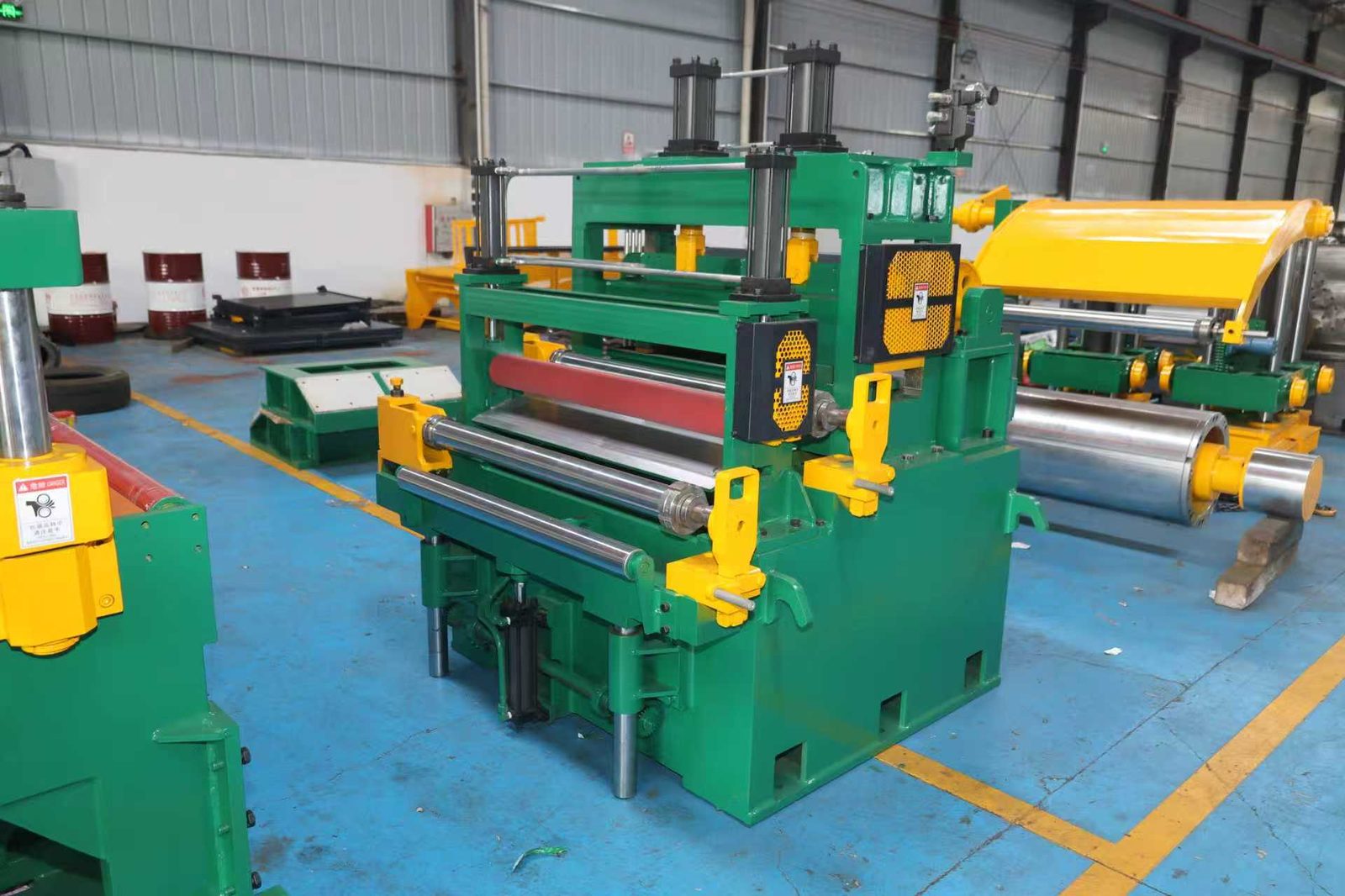

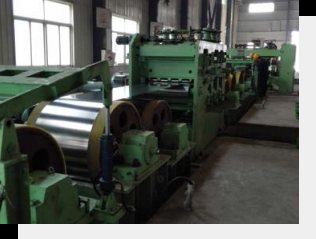

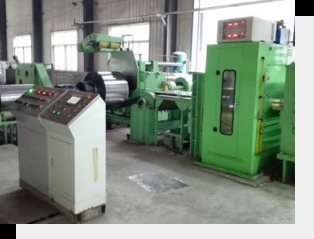

Stretch-bend leveling completely eliminates wavy edges, wavy shapes, scoop bend and light sickle bend — greatly improving strip flatness. It also reduces material anisotropy: in deep-drawn low-carbon sheet, differing longitudinal/transverse yield limits cause uneven extension and skirt-edge defects; tension leveling greatly improves this and cuts scrap rates.

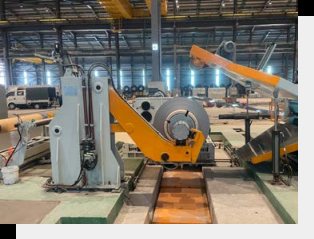

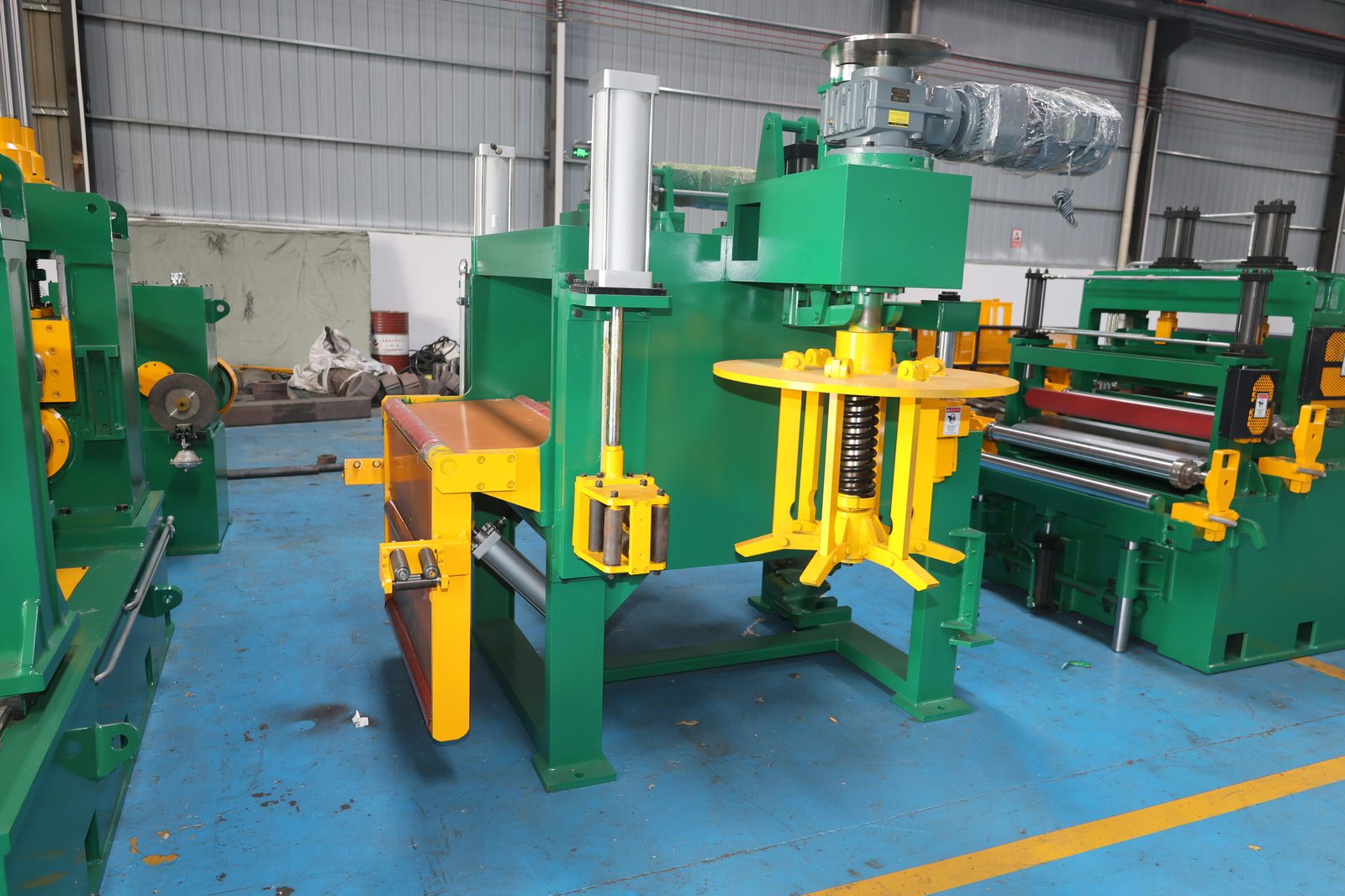

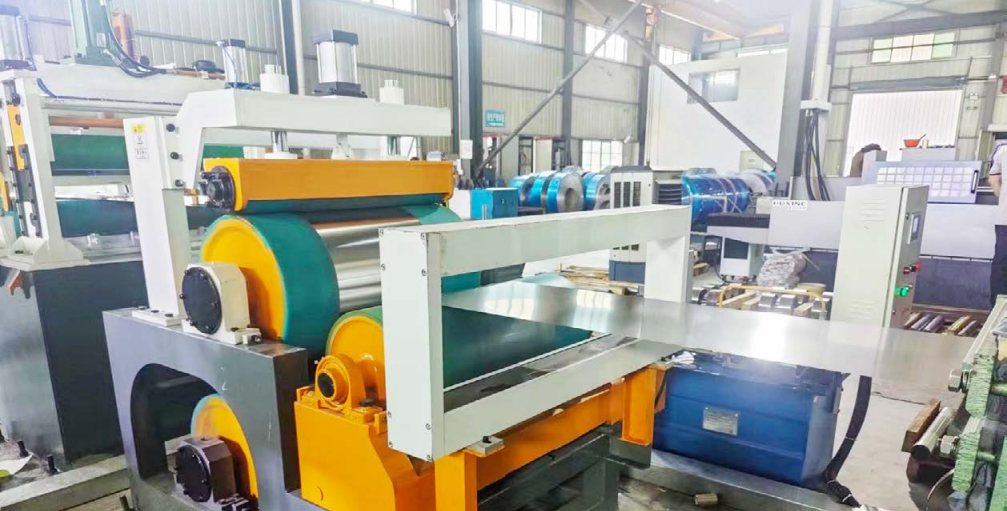

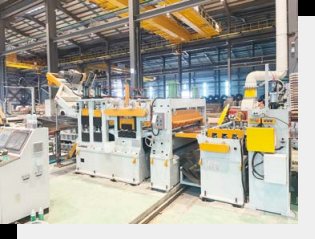

Companion equipment for coil surface processing lines — HL/NO.4 polishing lines, 8K mirror lines, galvanizing lines and other large production lines. Constant-tension mode ensures coils never collapse or loosen during production; single-side alignment or centering rewind available.

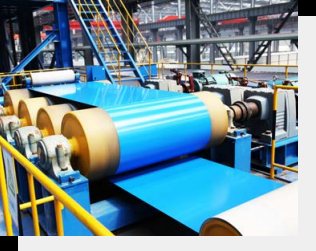

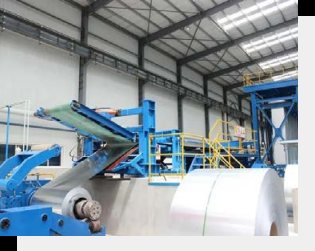

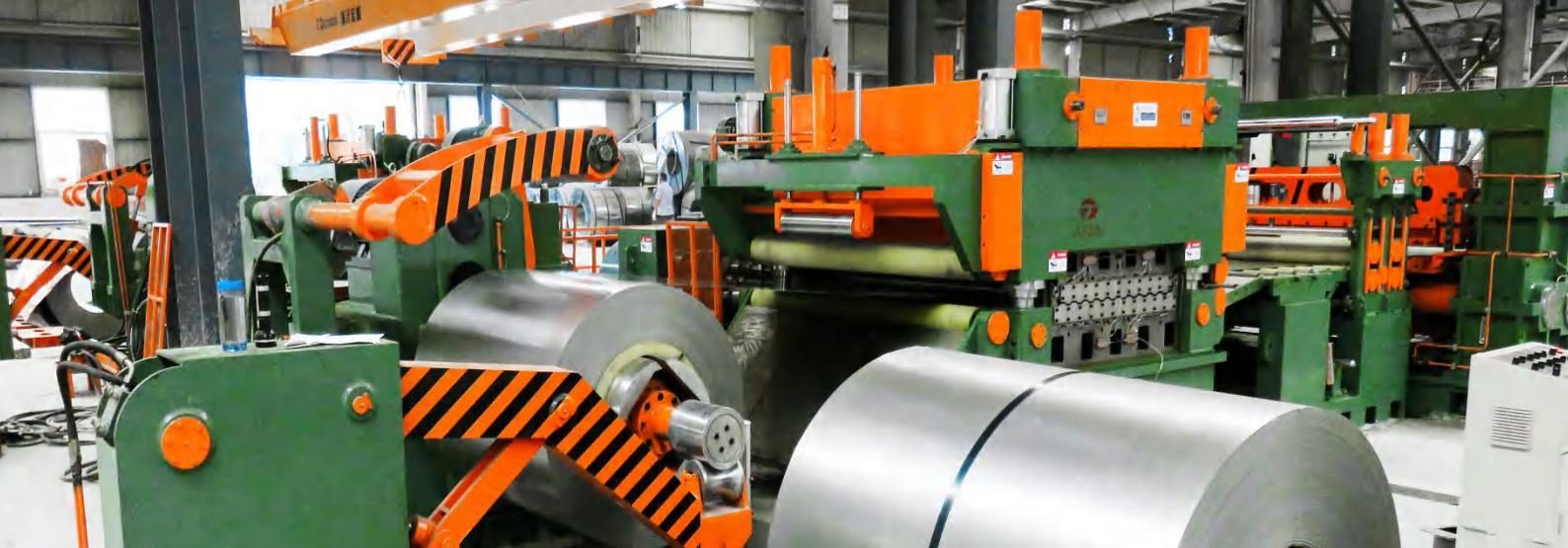

Color-coated board is today's ultimate deep-processing product for steel sheet — lightweight, attractive and corrosion-resistant, widely used in construction, light industry and home appliances.
Coil processing equipment is a large machine, 20–40 m long, with parameters determined by customer requirements. High automation is essential for reducing change time and boosting efficiency and safety.

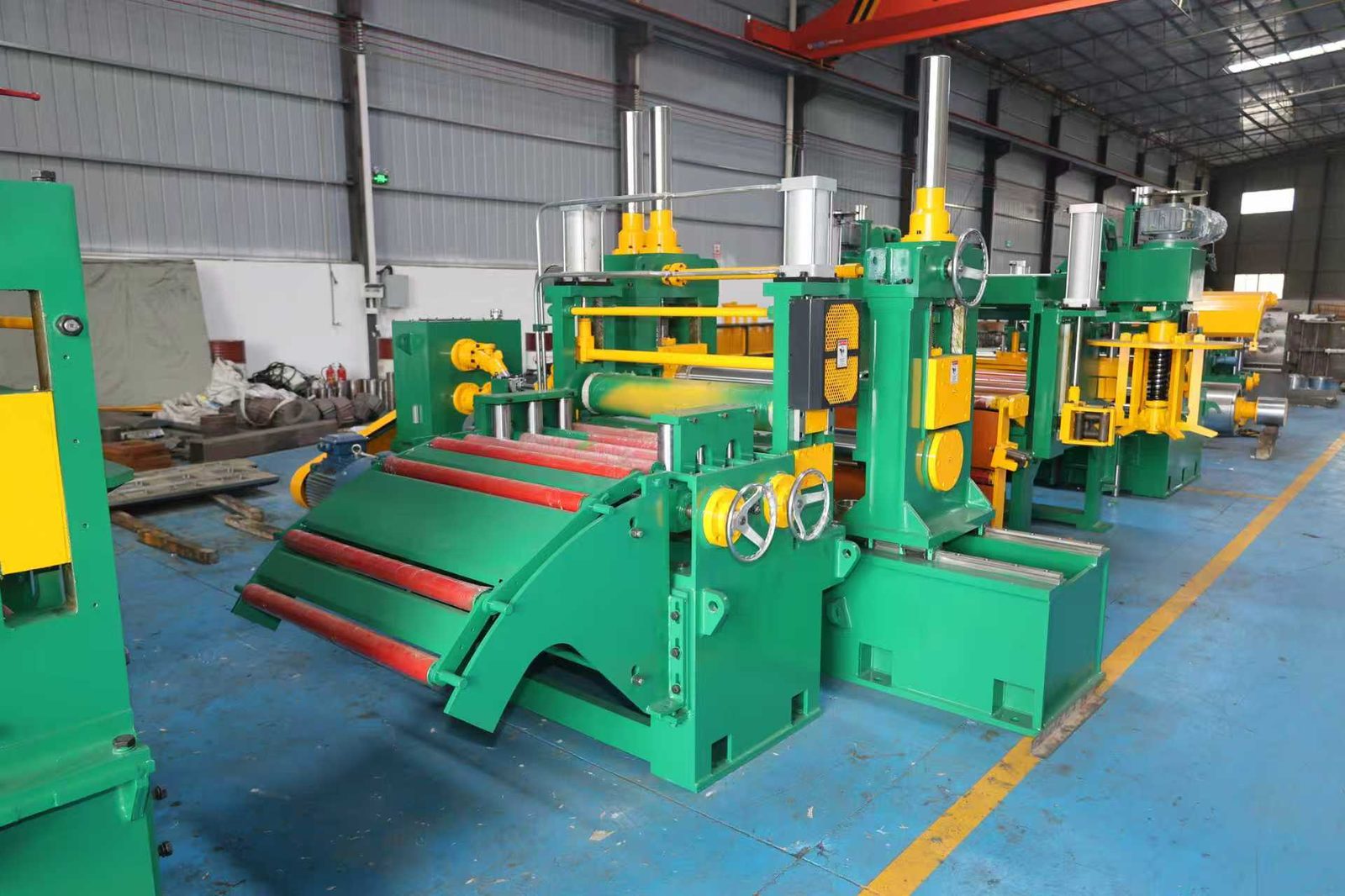

The whole line is centrally controlled by PLC; servo-driven feeding system and DC speed controller adjust line speed automatically.

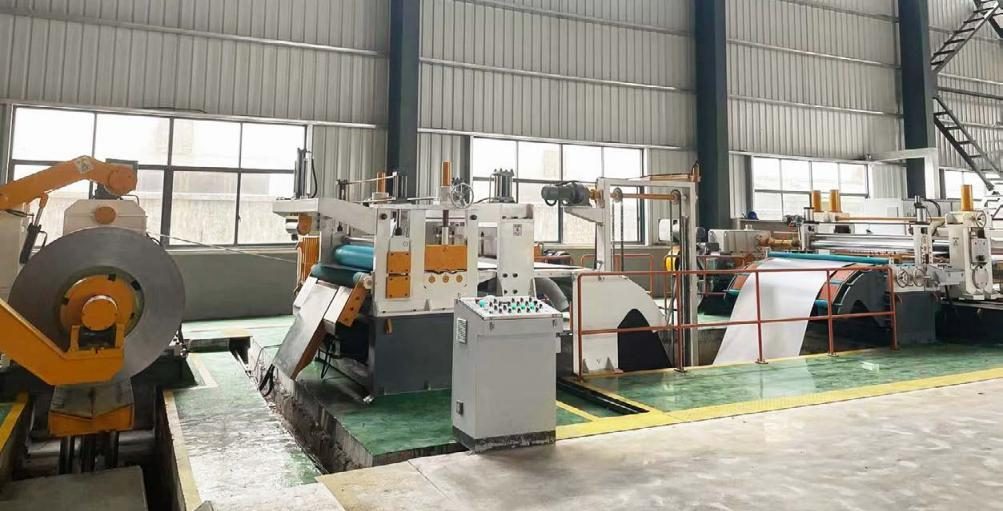

PLC centralizes the whole line, with RAM power-failure protection, EEPROM program memory and remote I/O modules.
Limiter control, infrared interlock control, warning alarm and emergency stop protect operators and material.
Tool-axis height display, shear gap meter and tension pressure gauges mounted on each device for precise commissioning.
Regular platforms for slitting and cut-to-length lines. Various configuration options optimize leveling performance, slitting/cutting accuracy and metal surface protection, tailored to the characteristics of your material.
| Model (Thk × Width) | Coil Weight | Thickness | Working Width | Thickness (imp.) | Width (imp.) |
|---|---|---|---|---|---|
| 0.1~2 × 650 | 5 T | 0.1–2 mm | 600 mm | 0.0039~5/64 in | 23 5/8 in |
| 0.3~3 × 900 | 10 T | 0.3–3 mm | 800 mm | 1/64~1/8 in | 31 1/2 in |
| 0.3~3 × 1100 | 15 T | 0.3–3 mm | 1000 mm | 1/64~1/8 in | 39 3/8 in |
| 0.3~3 × 1400 | 20 T | 0.3–3 mm | 1300 mm | 1/64~1/8 in | 51 3/16 in |
| 0.3~4 × 1650 | 25 T | 0.3–4 mm | 1600 mm | 1/64~5/132 in | 62 63/64 in |
| 0.3~4 × 1850 | 30 T | 0.3–4 mm | 1800 mm | 1/64~5/32 in | 70 55/64 in |
| 1.0~6 × 1650 | 25 T | 1.0–6 mm | 1600 mm | 3/64~15/64 in | 62 63/64 in |
| 1.0~6 × 1850 | 30 T | 1.0–6 mm | 1800 mm | 3/64~15/64 in | 70 55/64 in |
| 2.0~8 × 2200 | 35 T | 2.0–8 mm | 2000 mm | 1/8~5/16 in | 78 47/64 in |
| 2.0~12 × 2200 | 35 T | 2.0–12 mm | 2000 mm | 1/8~15/32 in | 78 47/64 in |
Note: the above standards are for reference only — parameters can be determined according to customer requirements.

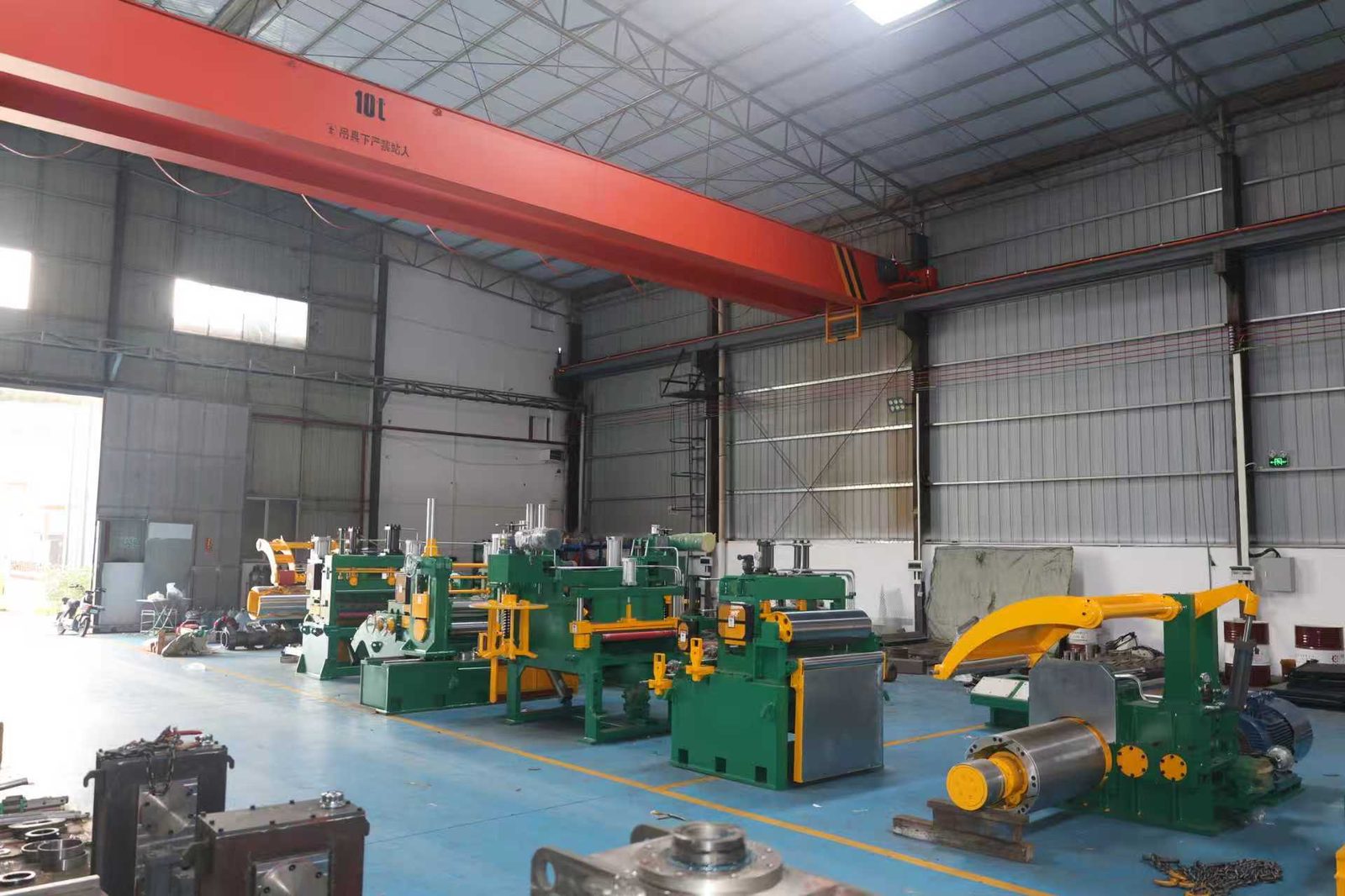

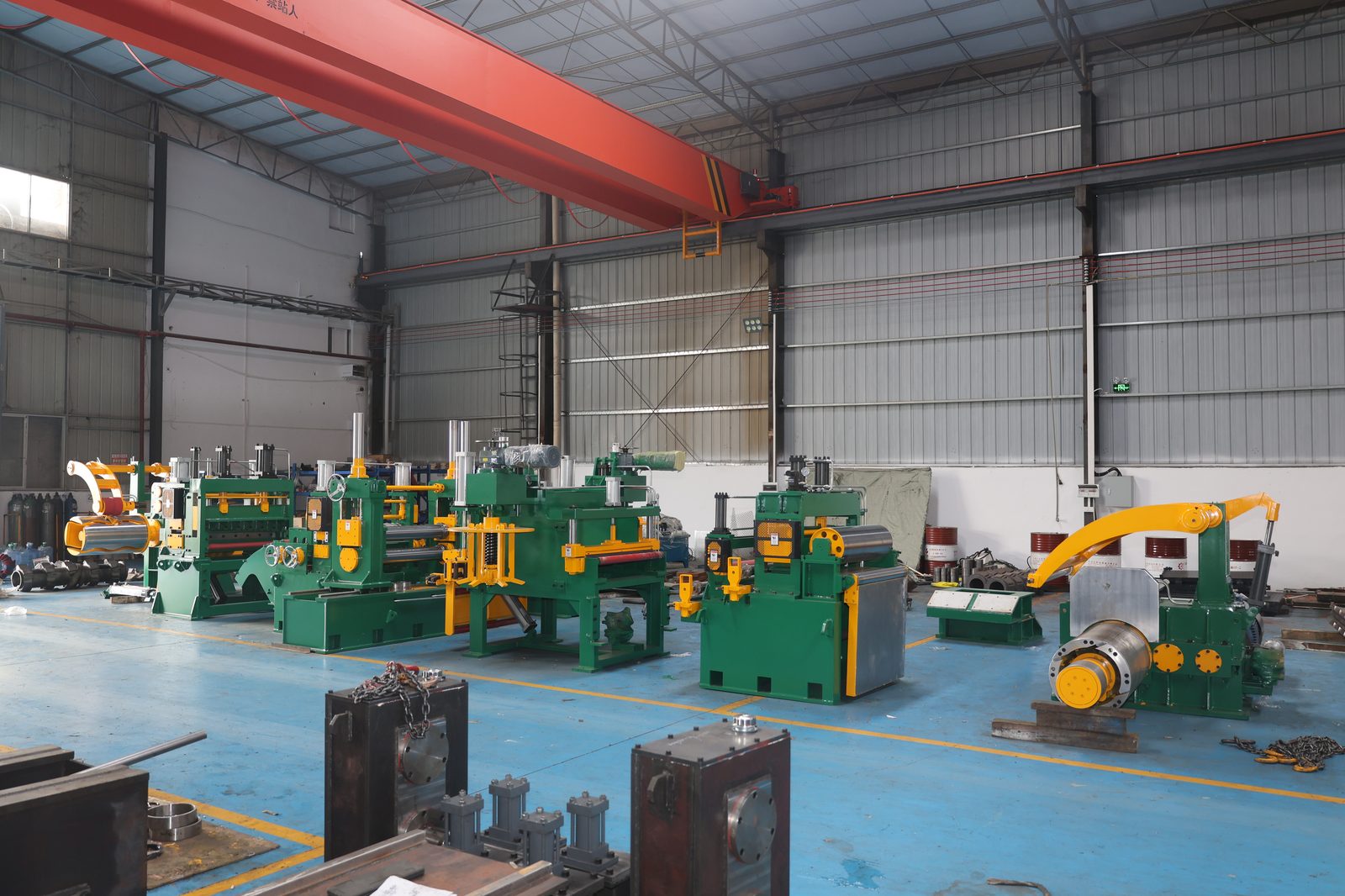

Every line is assembled and trial-run before shipment — frames, slitter heads, tension stations, drive trains and controls.
Material, thickness, width, coil weight, target output and available floor length help our engineers quote accurately from the first reply.
